PCBA Factory

At POE, we are committed to providing the most satisfactory production services and becoming your long-term global technology partner. Our vision is to be the most technologically advanced and trustworthy one-stop contract manufacturing solutions provider
PCBA Factory

20+ Years Experience China PCBA Factory


At POE, we are committed to providing the most satisfactory production services and becoming your long-term global technology partner. Our vision is to be the most technologically advanced and trustworthy one-stop contract manufacturing solutions provider.



☞  The services poe provides you include:

☞  One Stop contract OEM facility;

☞  Bom Sourcing fast BOM quote 1day;

☞  24hours Customs service;

☞  1day SMT Assembly leadtime;

☞  7days parts leadtime;

☞  35 BOM sourcing engineers specialised in Components;

☞  4SMT lines;

☞  ISO9001:2015 and ISO13485:2016;

☞  Medical PCBA/5G PCBA, Robot PCBA, IOT PCBA, new engergy PCBA,power supply PCBA;

☞  Cheap original components sourcing.

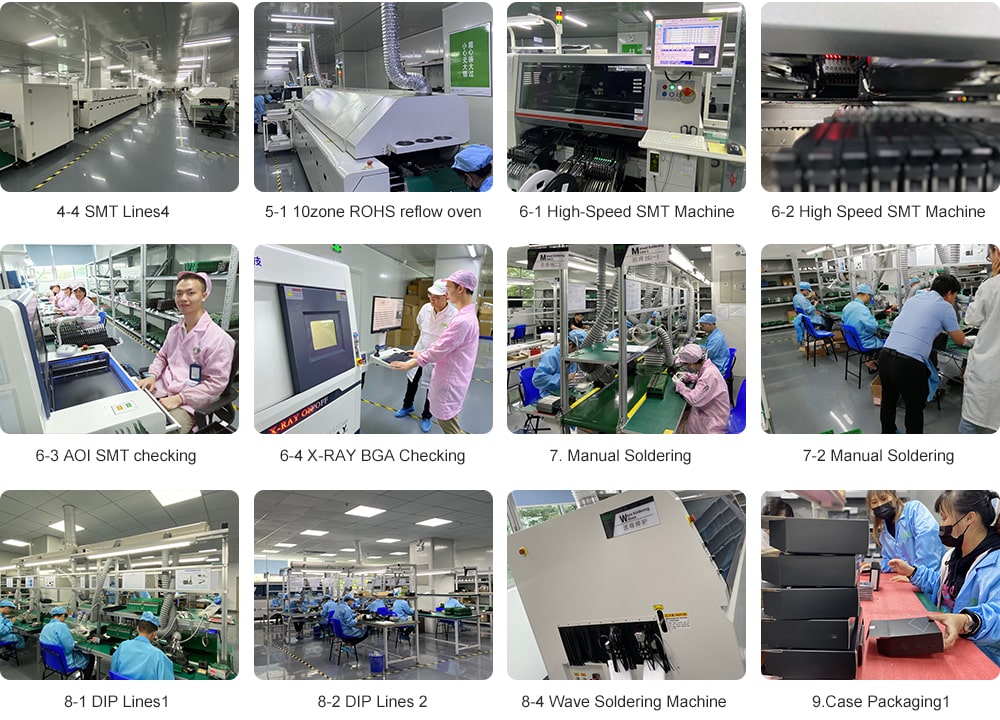

Nitrogen SMT Reflow Oven

Nitrogen SMT

POE uses a nitrogen SMT reflow oven with 10 temperature zones.

Reflow soldering is a common process in the electronics manufacturing industry, in which the solder on electronic components and printed circuit boards is melted by high temperature heating to bond them to each other. During the soldering process, oxygen can cause oxides to form on the solder surface, affecting the quality of the solder joints and thus the reliability of the product. Nitrogen reflow soldering involves filling the reflow chamber with nitrogen to reduce oxidation on the solder surface.

Image 1

Passing through the air furnace, there are white bubbles.

Image 2

The nitrogen furnace is completely black without any bubbles.

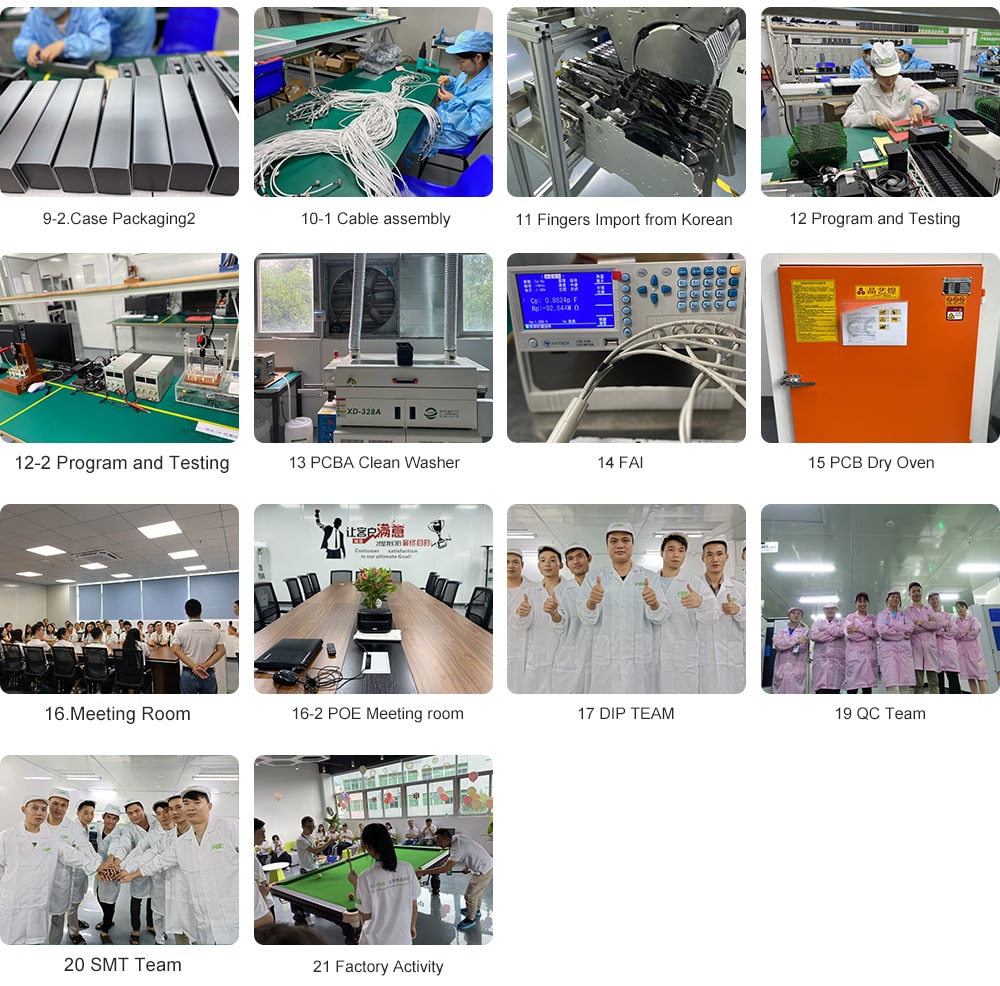

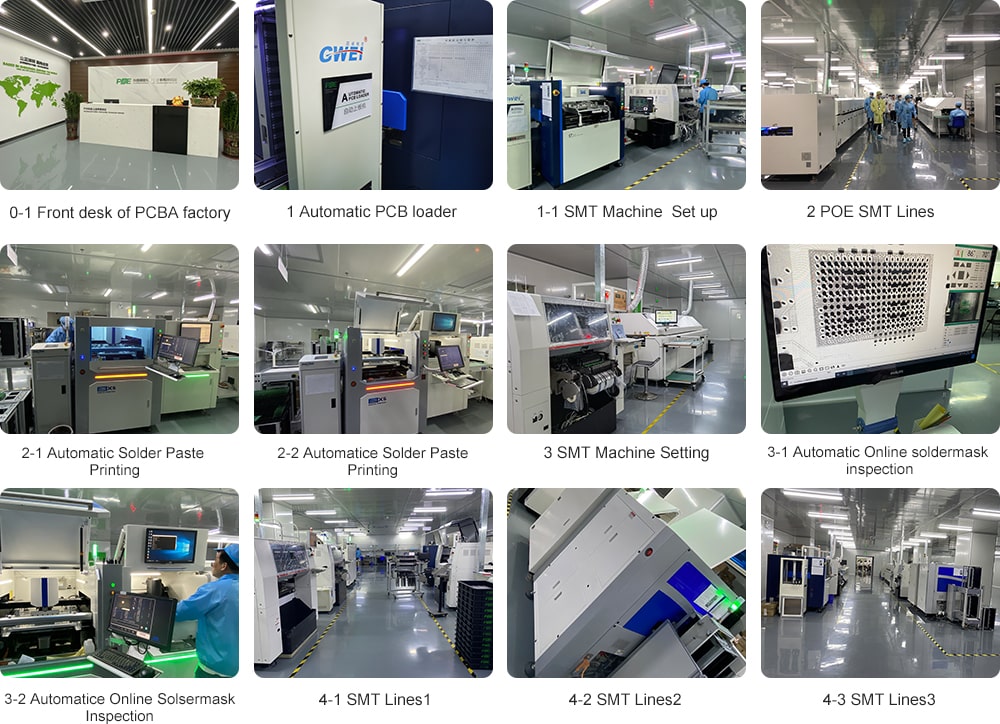

PCBA Process Flow


IQC

1.IQC

PCB Dry Oven

2.PCB Dry Oven

Automatic PCB Loader

3.Automatic PCB Loader

Solder Paste Machine

4.Solder Paste Machine

SPI

5.SPI

SMT Machine

6.SMT Machine

Nitrogen Reflow Oven

7.Nitrogen Reflow Oven

Manual Soldering

8.Manual Soldering

DIP Lines

9.DIP Lines

Cable Assembly

10.Cable Assembly

FAI

11.FAI

QC

12.QC

PCBA Clean Washer

13.PCBA Clean Washer

Program And Testing

14.Program And Testing

Packaging

15.Packaging
