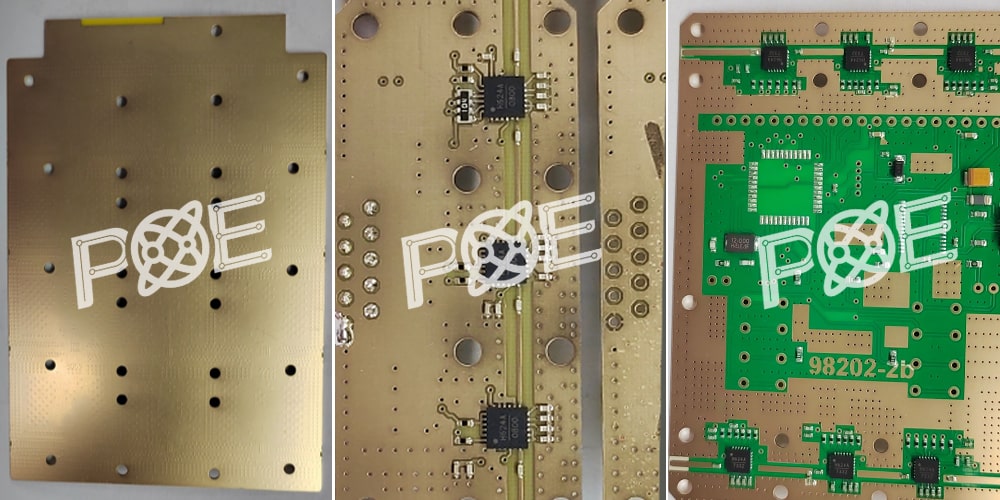

What Is an RF Printed Circuit Board?
30 September 2024
Views: 121
Radio Frequency (RF) PCB are specialized electronic substrates designed to handle high-frequency signals, typically in the range of 500 MHz to 100 GHz. These boards play a crucial role in modern wireless communication systems, radar technology, and high-speed digital circuits. Unlike standard PCBs, RF PCBs require careful consideration of signal integrity, impedance control, and electromagnetic interference (EMI) to maintain optimal performance.
Key Characteristics of RF PCBs
Substrate Material: RF PCBs often use low-loss materials such as Rogers RO4350B or Taconic RF-35, which have a dielectric constant (εr) between 3.0 and 3.5 and a loss tangent (tan δ) of 0.0021 to 0.0035 at 10 GHz. These materials offer superior performance compared to standard FR-4, which has a loss tangent of about 0.025 at 10 GHz.
Impedance Control: RF PCBs typically require strict impedance control, usually 50Ω or 75Ω, with tolerances as tight as ±5% to minimize signal reflections. This is achieved through precise control of trace width, thickness, and spacing relative to ground planes.
Copper Thickness: RF PCBs often use thicker copper (e.g., 1 oz or 35 μm) to reduce skin effect losses at high frequencies. The skin depth at 1 GHz in copper is approximately 2.1 μm, so thicker copper ensures efficient signal transmission.
Transmission Line Structures: RF PCBs employ specialized structures like microstrip lines, striplines, and coplanar waveguides to maintain signal integrity. For example, a 50Ω microstrip line on a 20-mil thick RO4350B substrate would have a width of approximately 39 mils (1 mm).
Ground Plane Design: Continuous ground planes and via stitching are used to minimize return current paths and reduce EMI. Via density in critical areas can be as high as 100 vias per square inch.
Design Considerations for RF PCBs
Signal Routing: RF traces should be kept short and direct, with 45-degree angles instead of 90-degree turns to minimize reflections. The maximum acceptable trace length is often calculated using the formula: L = c / (4 * f * √εr), where c is the speed of light, f is the frequency, and εr is the substrate's dielectric constant.
Layer Stack-up: RF PCBs often use fewer layers (4-6) compared to complex digital boards to minimize inter-layer coupling. A typical stack-up might include signal layers sandwiched between ground planes for improved isolation.
Component Placement: RF components are strategically placed to minimize trace lengths and maintain signal integrity. Sensitive RF sections are often isolated from digital and power circuits using techniques like partitioning and guard traces.
EMI/EMC Considerations: RF PCBs incorporate various EMI/EMC mitigation techniques, such as shield cans (providing 60-80 dB of isolation), ground fills, and careful power distribution to minimize noise coupling.
Applications of RF PCBs
RF PCBs are extensively used in:
Wireless communication devices (smartphones, Wi-Fi routers)
Satellite communication systems
Radar and navigation equipment
High-speed test and measurement instruments
IoT devices operating in the 2.4 GHz and 5 GHz bands
Performance Metrics
The performance of RF PCBs is often measured using network analyzers, with key parameters including:
Insertion Loss: Typically less than 0.1 dB/inch at 1 GHz for high-quality RF PCBs.
Return Loss: Often specified to be greater than 20 dB up to the maximum operating frequency.
Crosstalk: Usually required to be below -50 dB between adjacent traces at the highest operating frequency.
In conclusion, RF Printed Circuit Boards are specialized electronic substrates engineered to handle high-frequency signals with minimal loss and distortion. Their design requires careful consideration of materials, impedance control, signal routing, and EMI mitigation techniques. As wireless technologies continue to advance, the importance of RF PCBs in enabling high-performance communication systems will only grow.
