What are the types of IC packages?

19 February 2025

There are various types of integrated circuit (IC) packages, each designed to meet specific needs. Understanding the different types of IC packages is very helpful in choosing the best option for your project.

1. Dual In-line Package (DIP)

DIP is one of the most traditional types of IC packages. It has two parallel rows of pins extending from the side of the package, which is easy to mount on a breadboard or through-hole PCB. It is often used in prototyping and simpler circuits such as microcontrollers and logic gates.

Features:

Through-hole mounting

Rectangular

Available in plastic (PDIP) and ceramic (CDIP)

2. Small Outline Integrated Circuit (SOIC)

SOIC is a surface mount package with pins extending outward and downward in a gull-wing shape. It is smaller and lighter than DIP and is ideal for compact designs. It is used in consumer electronics and applications that require miniaturization.

Features:

Surface Mount Technology (SMT)

Smaller size compared to DIP

Miniaturization, suitable for compact designs

3. Quad Flat Package (QFP)

QFP is a surface mount package with pins extending to four sides in a gull-wing shape. It is widely used in applications requiring a high pin count. Often used in microprocessors, high-performance electronics.

Features:

Available in thin (TQFP) and ultra-thin (VQFP) versions

High pin density

Precise soldering required for assembly

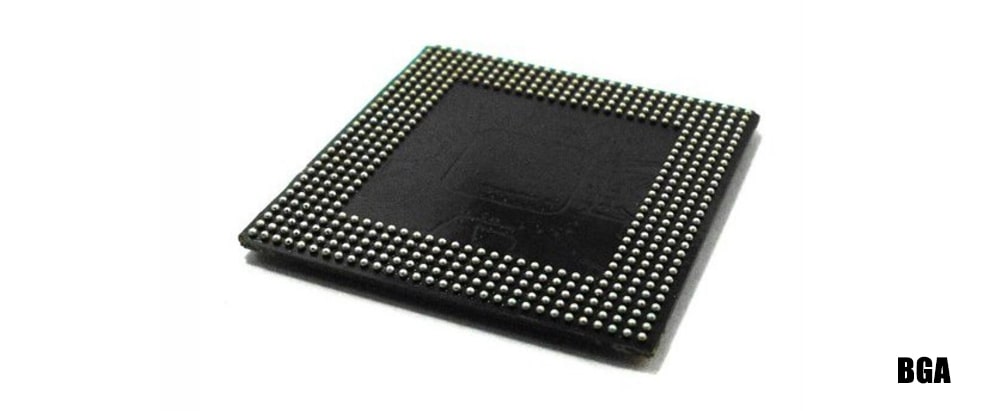

4. Ball Grid Array (BGA)

BGA packages use small solder balls arranged in a grid on the bottom surface instead of pins, which can achieve higher pin density and better electrical performance. Often used in high-performance processors, mobile devices and game consoles, etc.

Features:

Excellent heat dissipation and electrical performance

Small size and high pin count

Difficult to rework due to hidden connections

5. Chip Scale Package (CSP)

CSP is a BGA package that is almost the same size as the chip itself, suitable for miniaturized applications. Common applications are in smartphones, wearables, and IoT devices.

Features:

Smaller than standard BGA

Lightweight and compact

Requires advanced manufacturing processes

6. Pin Grid Array (PGA)

The pins of the PGA package are arranged in a grid on the bottom of the package. These pins are inserted into corresponding holes on the PCB. Commonly used in desktop processors.

Features:

Through-hole mounting

High number of pins

Socket compatibility, easy replacement

7. Leadless Chip Carrier (LCC)

LCC is a surface mount package with no protruding leads. It uses metal pads on the edge for electrical connections. Commonly used in aerospace, defense electronics, and industrial applications.

Features:

Compact, leadless design

Rugged and durable

Suitable for automated assembly

8. Dual Flat No-Lead (DFN) and Quad Flat No-Lead (QFN)

DFN and QFN packages are similar to LCC, but offer better thermal and electrical performance. They have metal pads under the package for surface mounting. Commonly used in power management IC, RF modules.

Features:

No protruding leads

Excellent heat dissipation

Light and thin

9. Wafer Level Package (WLP)

WLP is a cutting-edge package where the IC is packaged directly at the wafer level. It is very small and used in highly integrated designs. Used in smartphones, tablets, and advanced semiconductor devices

Features:

Extremely compact

High performance

Expensive manufacturing process

10. Ceramic package

Ceramic packages are used for high reliability and high temperature applications. They are more durable than plastic packages, but also more expensive. Commonly used in military and aerospace electronics.

Features:

High heat resistance

Excellent durability

Suitable for extreme environments

Conclusion

Choosing the right IC package type depends on your project requirements, from traditional DIP to advanced WLP packages, each type has unique advantages and applications.
