When to choose QFN components in PCBA?

One popular component type in PCBA is the quad flat no-lead (QFN) package. QFN components are surface mount ICs that feature good power, small size, and good heat dissipation. However, QFN packages are not always the best choice for every application. When to choose QFN components in PCBA?
When to choose QFN components in PCBA?
27 December 2024
Views: 45
One popular component type in PCBA is the quad flat no-lead (QFN) package. QFN components are surface mount ICs that feature good power, small size, and good heat dissipation. However, QFN packages are not always the best choice for every application. When to choose QFN components in PCBA?

QFN components in PCBA

What is a QFN package?

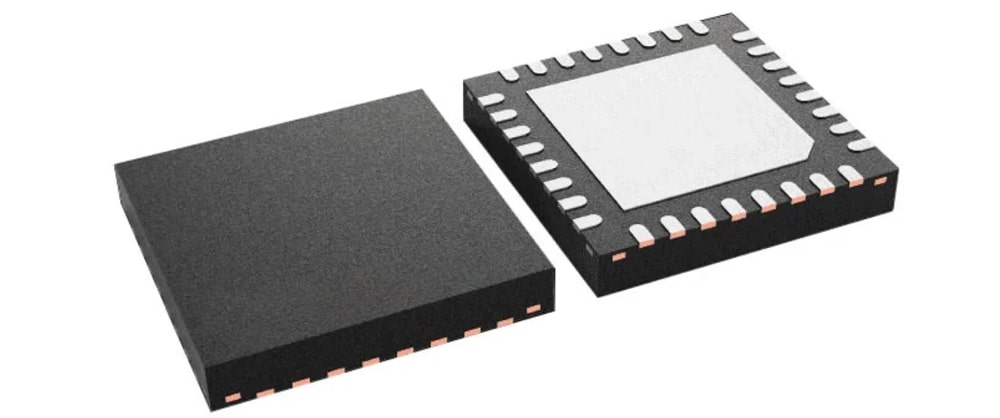

The QFN (quad flat no-lead) package is a square IC with flat leads extending from the sides and a thermal pad on the bottom. The package is small and lightweight, designed for high-performance applications. QFN components are mounted to the PCB using SMT, and the leads do not protrude outward, making them ideal for compact designs.

When to choose QFN components in PCBA?
To determine if QFN components are the right choice for your PCBA project, consider the following factors:

1. Is your design limited by space?
If your product requires a compact PCB design, such as wearables, medical devices, or portable electronics, QFN components are an excellent choice. They are small, take up little space, and enable high-density layouts.

2. Does your circuit require high-speed signal integrity?
For designs with high-speed signals, such as RF circuits, QFN components are preferred because their short lead lengths reduce signal loss and improve performance.

3. Does your design generate a lot of heat?
When your circuit generates a lot of heat, such as in power management, the thermal pad on the QFN package helps to effectively dissipate the heat and ensure reliable operation.

4. Is cost a key factor in your project?
In applications where cost is a concern, QFN components offer a balance between performance and price, making them a practical choice for medium and high-volume production.

5. Does your assembly process support SMT and advanced inspection techniques?
QFN components are optimized for SMT processes, making them suitable for automated assembly lines. Flat leads and thermal pads ensure strong solder joints and reduce the possibility of assembly defects.

Conclusion
QFN components are versatile and efficient solutions for many PCBA applications. They are suitable for compact designs, high-frequency circuits, and projects that generate large amounts of heat without high costs.
